The dry and wet sections of the ICU suspension bridge are equipped with medical monitoring instrument platforms that can be lifted and lowered. On the dry and wet ends, oxygen, air, suction, strong and weak electricity, and network input terminals are respectively configured on the tower body within the reach of medical staff. The wet section adopts a cantilever structure, which increases the treatment space. The moving and rotating part adopts pneumatic braking, which can lock the position and direction of the tower at will.

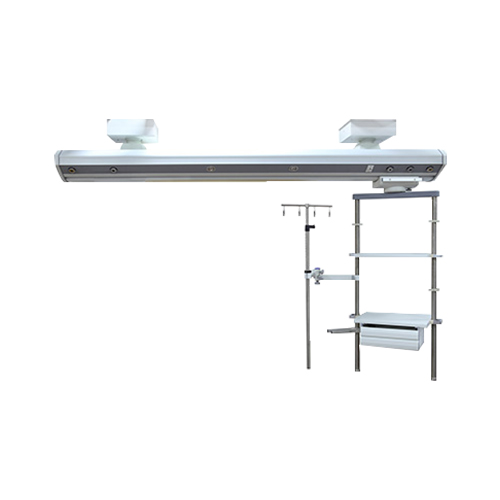

The dry and wet suspension bridge simplifies the functional configuration and combines the dry and wet sections into one. It has a simple structure, is easy to use, saves space, and is suitable for small monitoring areas and emergency rooms. In addition, various medical accessories can be selected according to your requirements.

Basic parameters and configuration:

1. Rotation angle 340°, lateral running distance: ±500mm.

2. Equipment pallet: load ≤ 60Kg.

3. Beam length: 2.4-3.2m.

(1) Cross beam load ≤ 250Kg

(2) Horizontal operation mode of hanging box Manual

4. Accessory configuration (subject to actual needs):

(1) Equipment tray of 690mm×400mm.

(2) Tray with drawer.

(3) Various infusion stands.

(4) Safety low-voltage halogen lighting (built into the beam, integrated with the beam).

(5) 1 monitor network interface.

Please read the product instructions carefully or purchase and use it under the guidance of medical personnel
