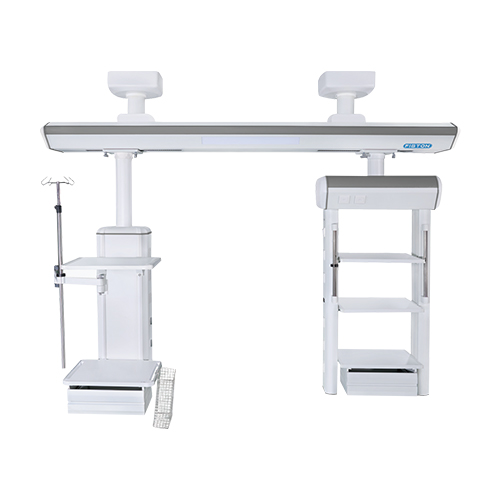

Dry and wet separation suspension bridge FGT-120CE
2026/7/20
Technical parameters
1. The functional column can move left and right 2500mm, equipped with a braking system
2. Functional column rotation angle ≥340°
3. Maximum load ≥350KG4. Functional column L21000mm
Basic configuration
1. The length of the beam can be customized according to needs
2.LED lighting*1
3. Dry section functional column*1, wet section functional column*1
4. Standardized medical Qi terminals: O2*2, VAC*2, AIR*1 (can be configured according to actual conditions)
5. National standard 5-hole 10A power terminal * 6 (can be configured according to actual conditions)
6. 2 protective ground terminals
7. Data expansion module RJ45*2 (optional BNC, VGA, RJ45, RJ11, HDMI, RGB, audio and video and other interfaces)
8. Instrument platform*2 (can be configured according to actual situation)
9. Self-priming storage drawer*1
10. Customized accessories (optional monitor brackets, pipeline management devices, etc.)
11. Stainless steel infusion stand*1, stainless steel storage basket*1
Product features
· Made of high-strength aluminum alloy material with good stability
High-strength aluminum alloy is selected for one-time extrusion molding to achieve four times the load-bearing safety factor requirement. It adopts high-quality bearings with good wear resistance and can continuously rotate >100,000 times without damage under full load.
·High security
The oxygen leak hole design at the bottom of the functional column ensures that accidentally leaked oxygen can be discharged smoothly, effectively preventing fire accidents caused by oxygen accumulation in the tower.
