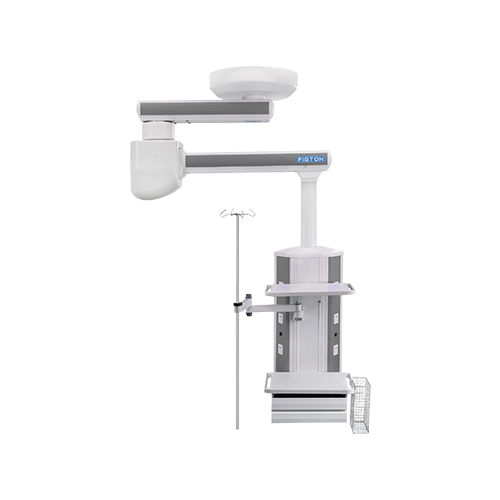

Double-arm electric pendant (arm lifting type) FGT-220-380B model
2026/7/20
Technical parameters
1. The rotation radius of both arms is 900mm+840mm (can be customized according to the actual situation)
2. The rotation angle of the cantilever and functional column is ≥340°
3. Maximum load ≥350KG4. Functional column L21000mm
Basic configuration
1. Compressed air braking or mechanical braking system
2. Standardized medical Qi terminal (can be configured according to actual conditions)
3. National standard 5-hole 10A power terminal * 6 (can be configured according to actual conditions)
4. Data expansion module RJ45*2 (optional BNC, VGA, RJ45, RJ11, HDMI, RGB, audio and video and other interfaces)
5. 2 protective ground terminals
6. Instrument platform*2 (can be configured according to actual situation)
7. Height-adjustable 304 stainless steel infusion stand*1, stainless steel storage basket*1
8. Self-priming storage drawer*1
9. Customized accessories (optional infusion pump stand, monitor stand, pipeline management device, etc.)
Product features1. The rotation radius of both arms is 900mm+840mm (can be customized according to the actual situation)
2. The rotation angle of the cantilever and functional column is ≥340°
3. Maximum load ≥350KG4. Functional column L21000mm
Basic configuration
1. Compressed air braking or mechanical braking system
2. Standardized medical Qi terminal (can be configured according to actual conditions)
3. National standard 5-hole 10A power terminal * 6 (can be configured according to actual conditions)
4. Data expansion module RJ45*2 (optional BNC, VGA, RJ45, RJ11, HDMI, RGB, audio and video and other interfaces)
5. 2 protective ground terminals
6. Instrument platform*2 (can be configured according to actual situation)
7. Height-adjustable 304 stainless steel infusion stand*1, stainless steel storage basket*1
8. Self-priming storage drawer*1
9. Customized accessories (optional infusion pump stand, monitor stand, pipeline management device, etc.)
· Flexible adjustment and simple control
340° flexible rotation, easy to push and pull. The product uses imported high-quality bearings with good wear resistance and can be rotated continuously >100,000 times without damage under full load.
·Safe and reliable
The overall fully enclosed design means that the power lines and air source pipelines are not exposed, ensuring that the lines will not fall off due to changes in position during the rotation of the pendant. Each joint is equipped with mechanical brakes to easily lock the position of the rotating arm and box. The equipment has no drift and is safe and reliable.
·Solid structure and long-lasting durability
High-strength aluminum alloy is selected for one-time extrusion molding to meet four times the load-bearing safety factor requirements. It has strong load-bearing capacity and will not deform under long-term load-bearing use, ensuring the durability of the equipment.
·Resistant to corrosion and pollution
The main body material is high-strength aluminum alloy, with anti-rust and anti-fouling treatment inside and outside. The surface is sprayed with high-voltage electrostatic powder to resist corrosion and pollution.
